Amira Ogle
Sample maker & production patternmaker · Dallas, Texas

Technical Portfolio 2026

Download the PDF version

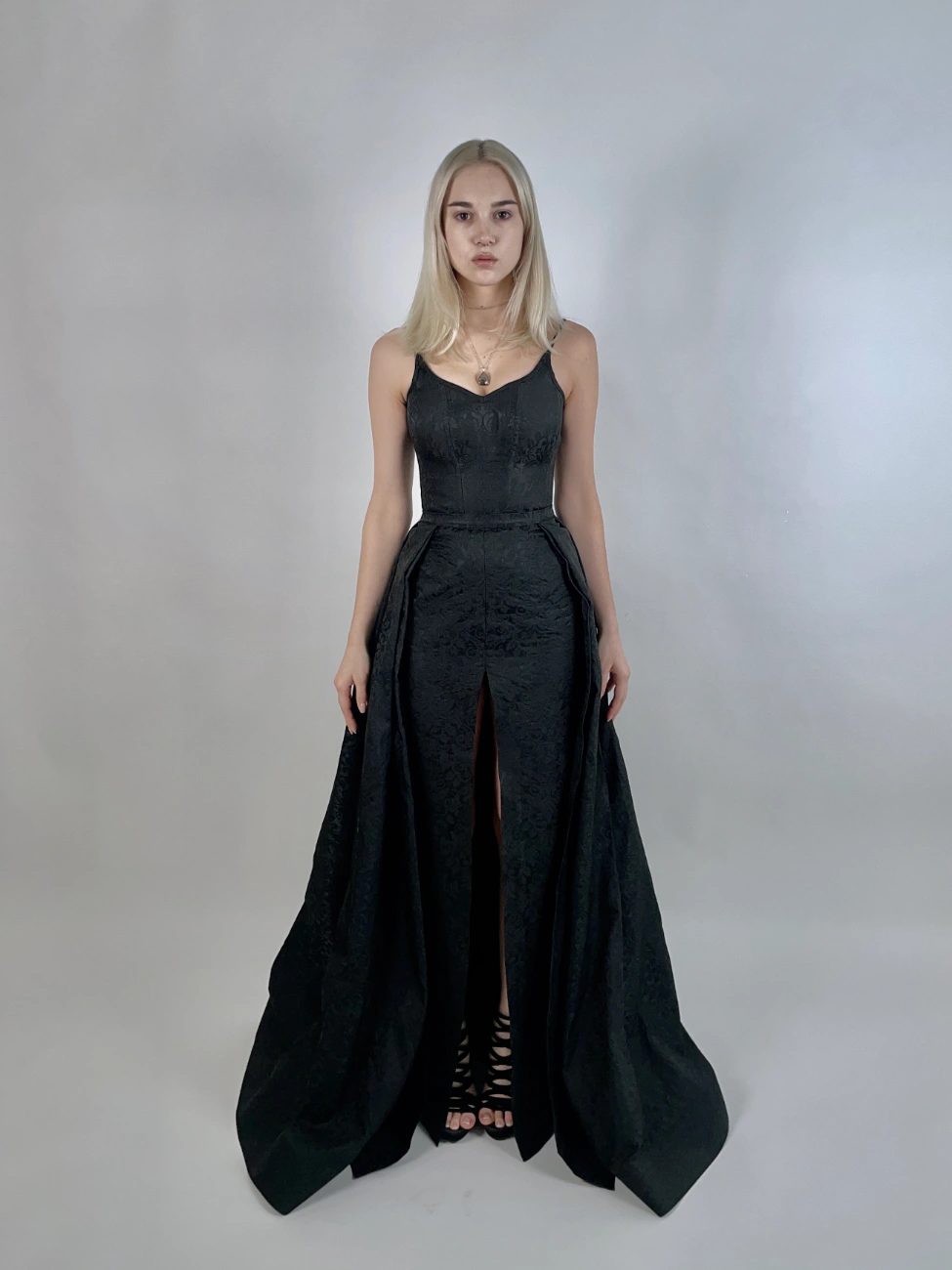

Style 03 — corseted ball gown, brocade

03 — Corseted Ball Gown

Brocade · boned · lined

 Style 02 — poplin cape dress

02 — Poplin Cape Dress

Poplin · French seams

 Style 01 — plissé knit top

01 — Knitwear

Knit · overlock · coverstitch

03 · Corseted Ball Gown

Patterned and sewn by Amira Ogle
2022 · Graz, Austria
Brocade gown, front, on the dress form

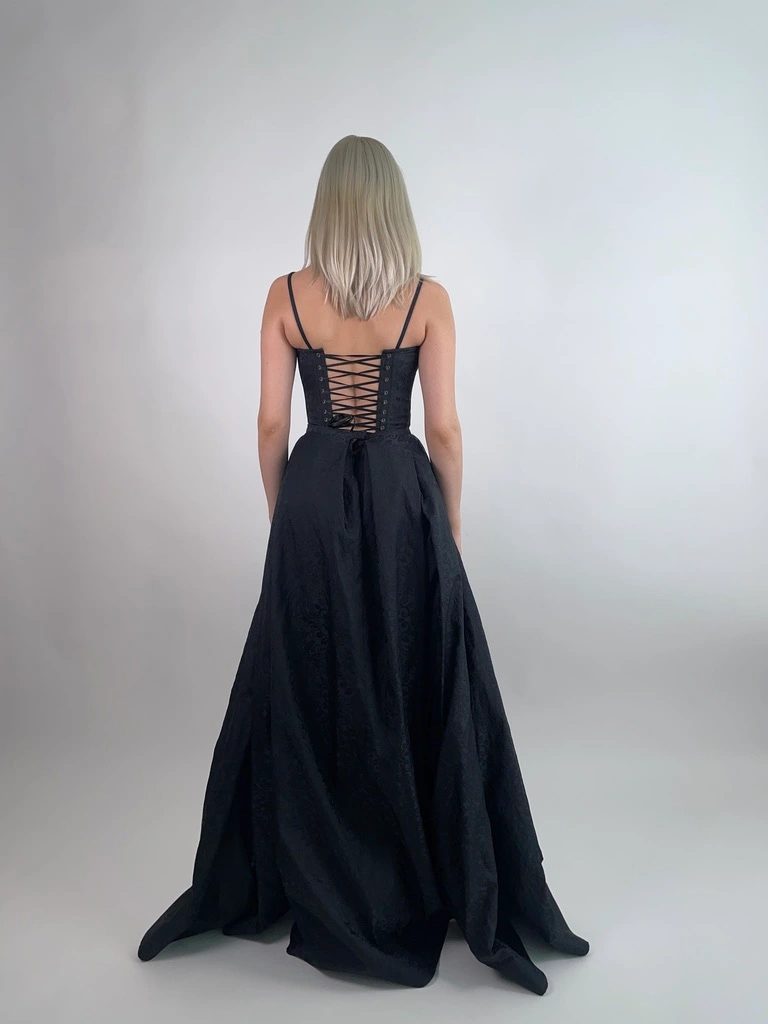

Brocade gown, back, laced closure and overskirt
SelfBrocade
LiningViscose
SupportSpiral steel boning
ClosureLacing + CB zip
HemMitred, lining set to allowance
Design sketch, Style 03
Design sketch

Production pattern

S/A included · cut line

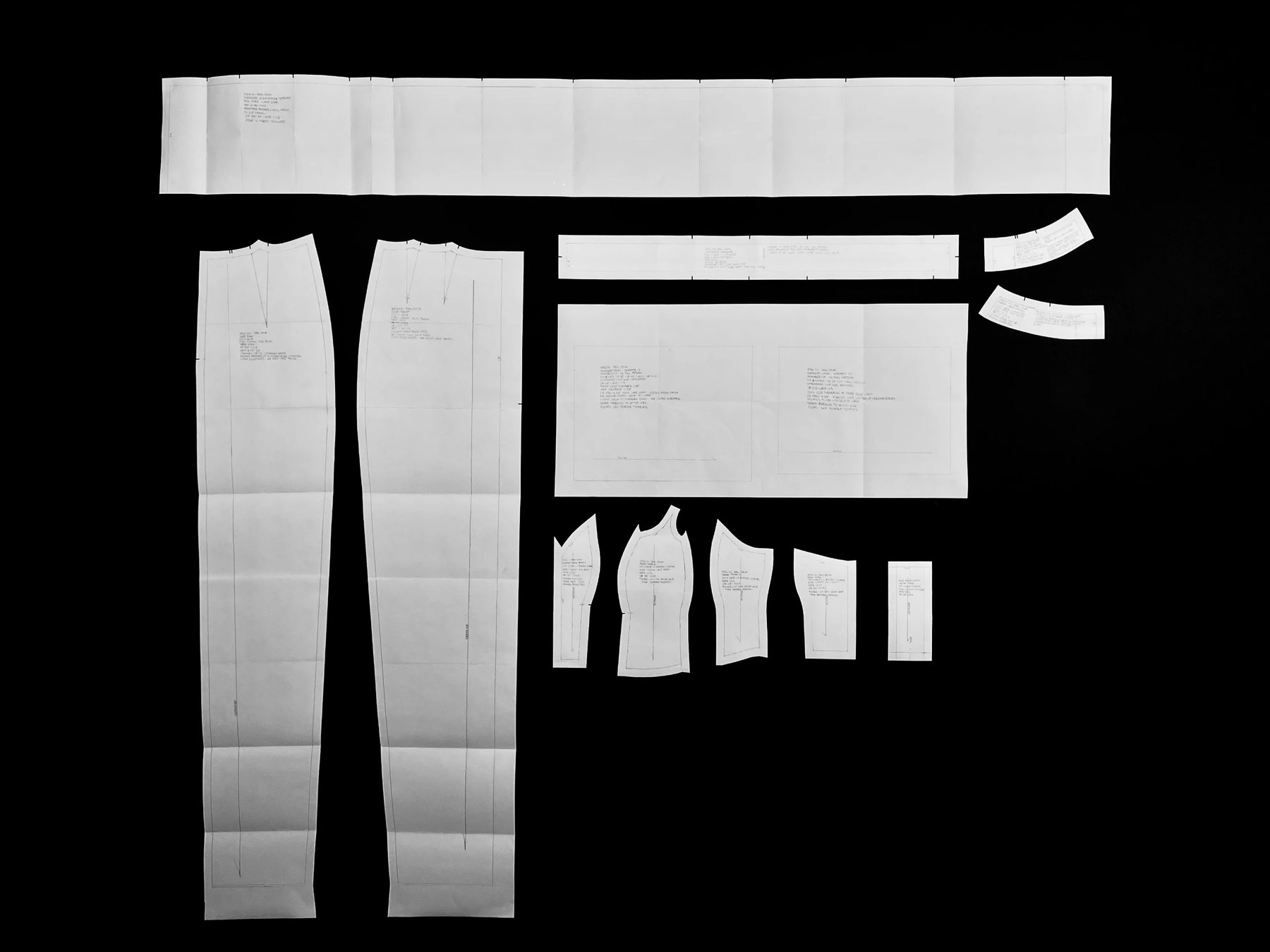

Full production pattern set for Style 03, ten pieces at real size
Full set — ten pieces at real size, the overskirt piece at 1:5, and the pleat header template at real size.

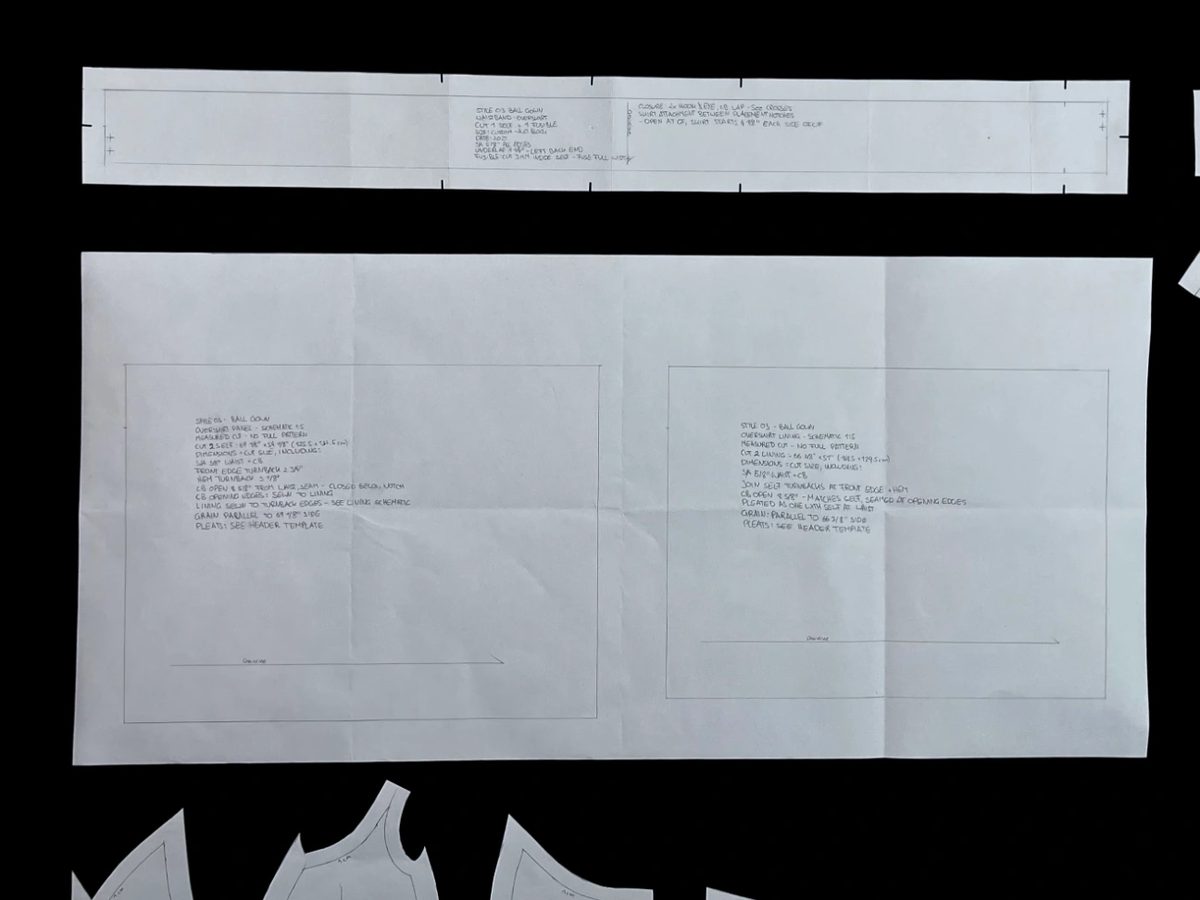

Overskirt pattern piece at 1:5 scale
Overskirt piece at 1:5, self and lining.

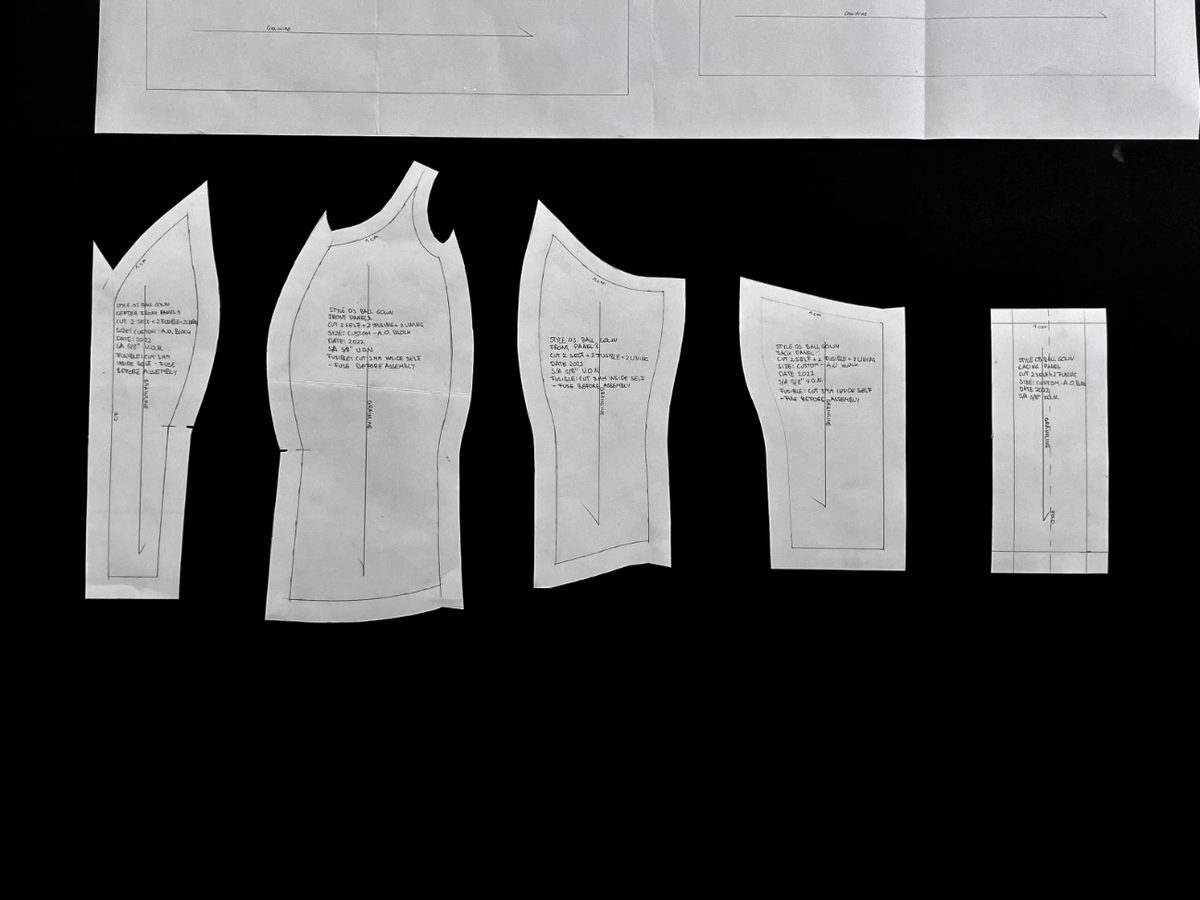

Corset pattern pieces with information blocks and notches
Corset pieces: information block, straight grain, notches, seam allowance.

Inside the garment

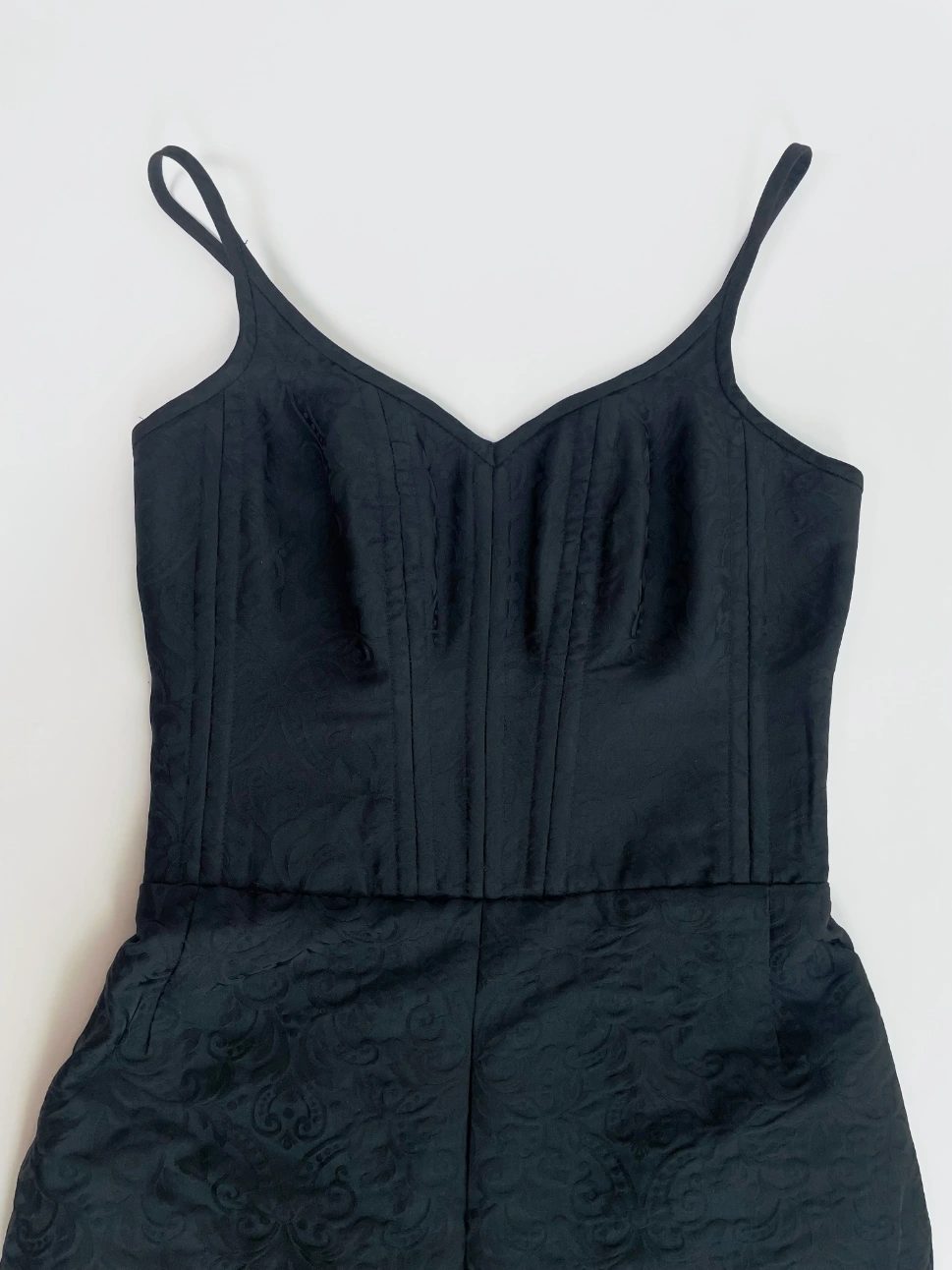

Boning channels stitched on the seam allowances
Boning in stitched channels on the allowances; ends closed.

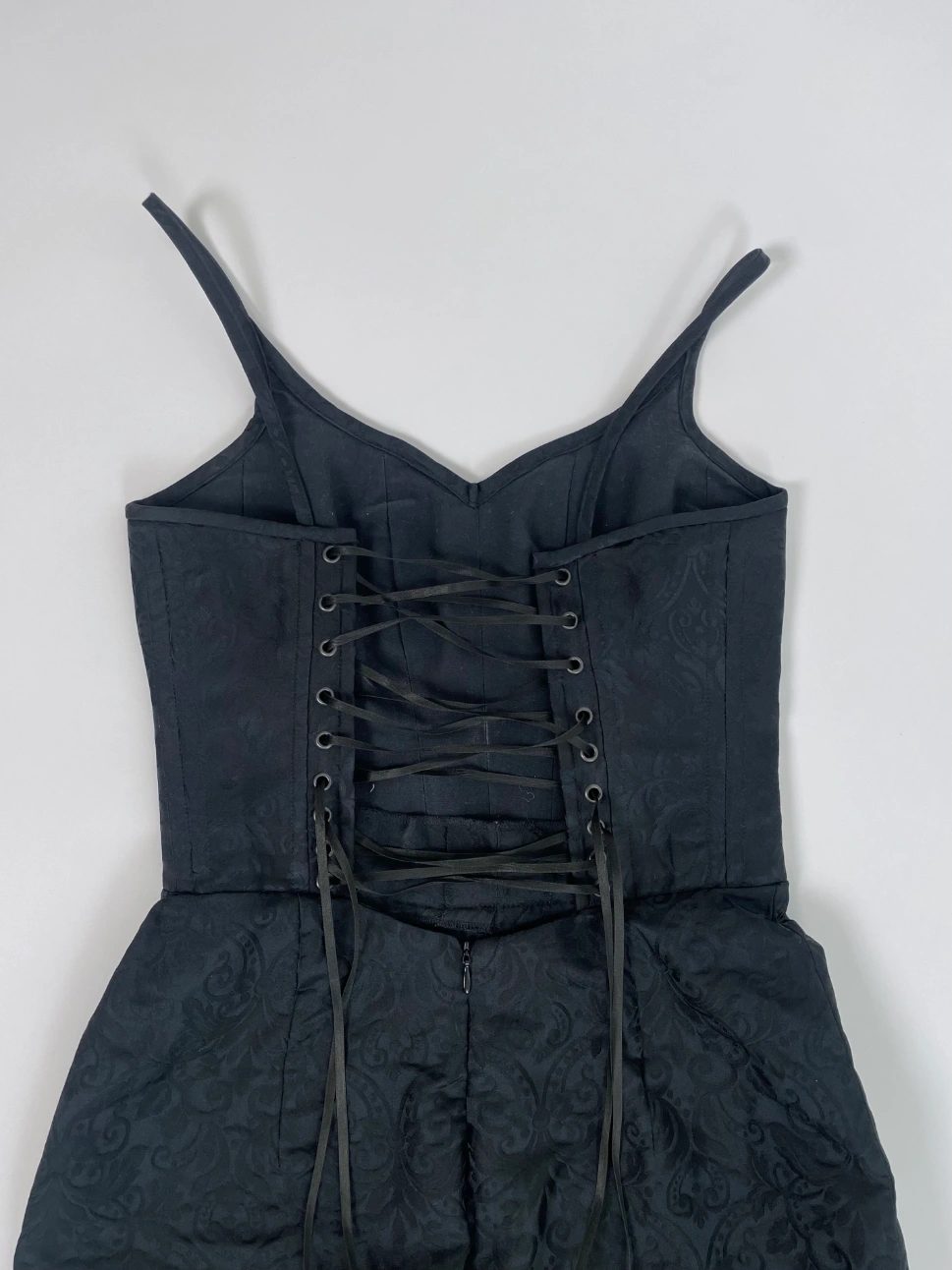

Lined bodice with set eyelets and back zip
Lined bodice, laced through set eyelets; zip set into the back skirt.

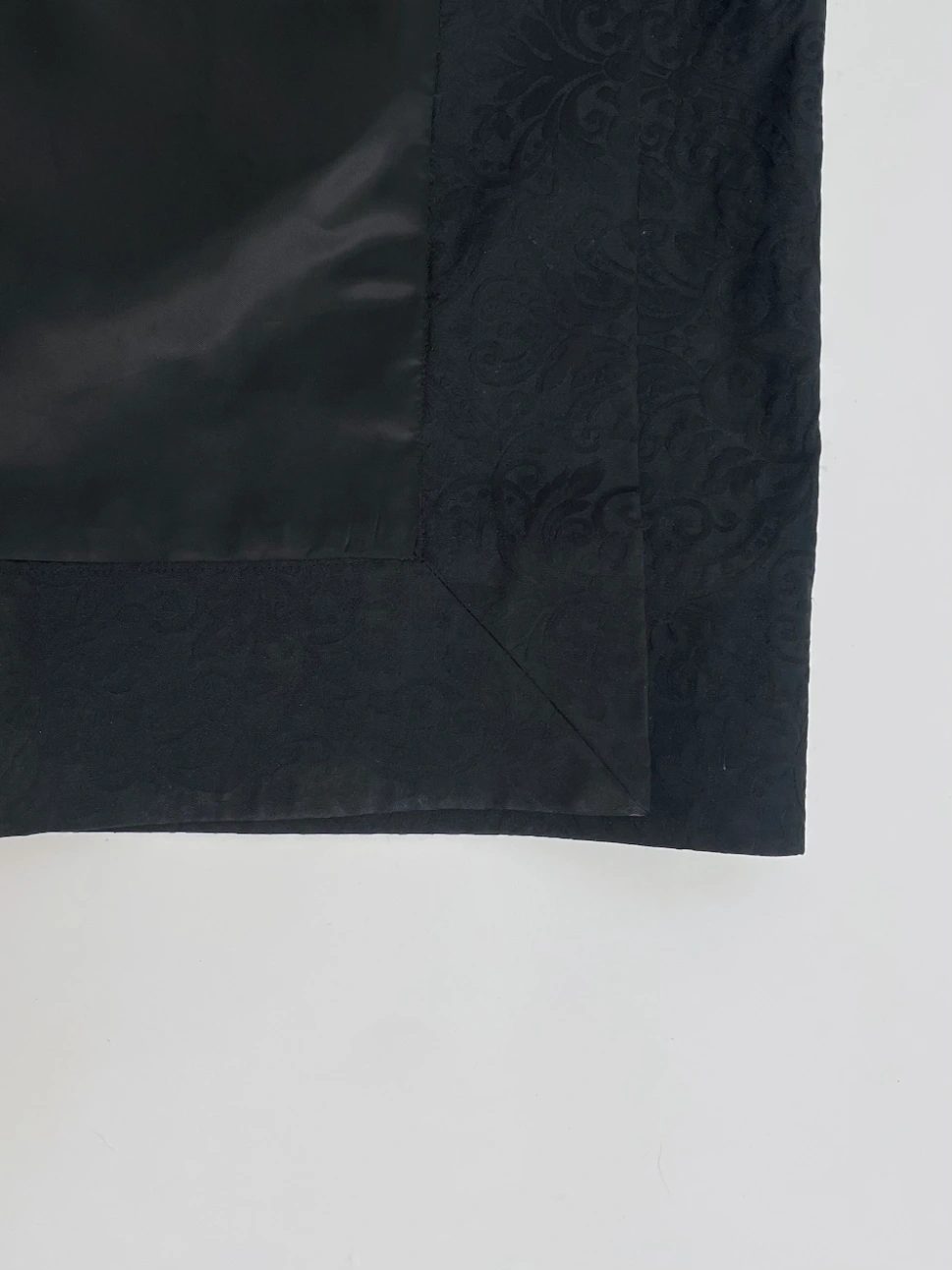

Mitred hem corner at 45 degrees
Mitred corner, 45°; lining stitched to the hem allowance.

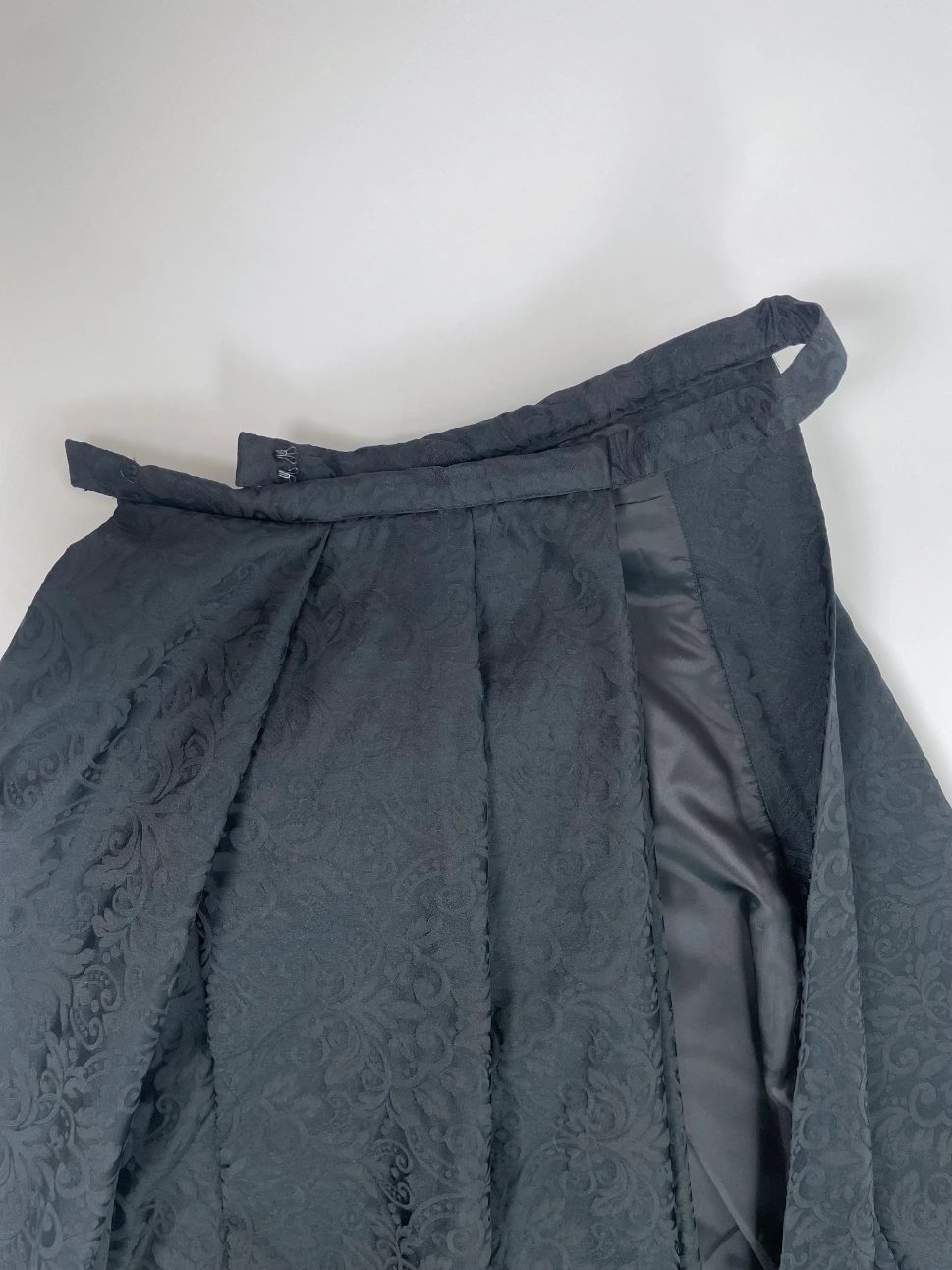

Self waistband with centre-back extension, hooks and deep pleats
Self waistband, CB extension, hooks; deep pleats; lining throughout the whole skirt.

Cutter's must

Custom A.O. block · 2022 · flat drafted, Müller & Sohn
Quantities hold at every size · S/A 5/8″ unless noted
Self — polyester
PN1Centre front panel 11 pr
PN2Front panel 21 pr
PN3Front panel 31 pr
PN4Back panel1 pr
PN5Lacing panel1 pr
PN6Skirt front1 pr
PN7Skirt back1 pr
PN8Front waist facing1 pr
PN9Back waist facing1 pr
PN10Overskirt waistband1
PN11Overskirt panel △2
Lining — cotton bodice, viscose overskirt
PN1LCentre front panel 11 pr
PN2LFront panel 21 pr
PN3LFront panel 31 pr
PN4LBack panel1 pr
PN12LOverskirt lining △2
Fusible interlining
PN1FCentre front panel 11 pr
PN2FFront panel 21 pr
PN3FFront panel 31 pr
PN4FBack panel1 pr
PN5FLacing panel1 pr
PN8FFront waist facing1 pr
PN9FBack waist facing1 pr
PN10FOverskirt waistband1

1 pr = cut 1 pair, mirrored  ·  △ = measured cut from a 1:5 schematic, no full pattern  ·  fusible cut 3 mm inside self, fused before assembly.

Held with the pattern, not on the must: pleat header template, full scale, top 69 1/8″. Transfer notches and fold marks to the cut panel.

Notions — quantities vary by size: spiral steel boning, one per vertical seam · invisible zip 8.6″ CB skirt · 18 eyelets, 9 per side · lacing cord 12 ft · 2 hook and eye at the waistband.

02 · Poplin Cape Dress

Patterned and sewn by Amira Ogle
2025 · Paris, France
Poplin cape dress, front
Poplin cape dress, back
SelfCotton poplin
SeamsFrench seams; bias binding at CF and collar
ClosureHook & eyelet
HemNarrow double-fold rolled

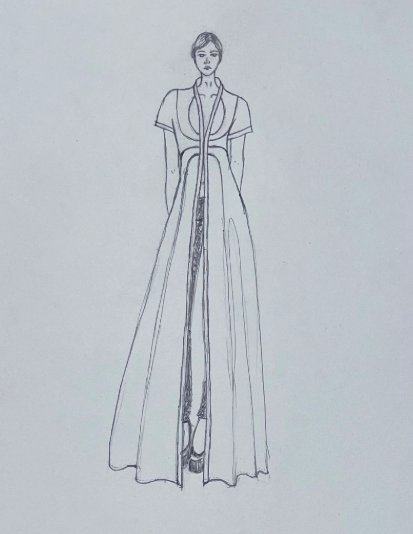

Design sketch, Style 02
Design sketch

Production pattern

9 pieces

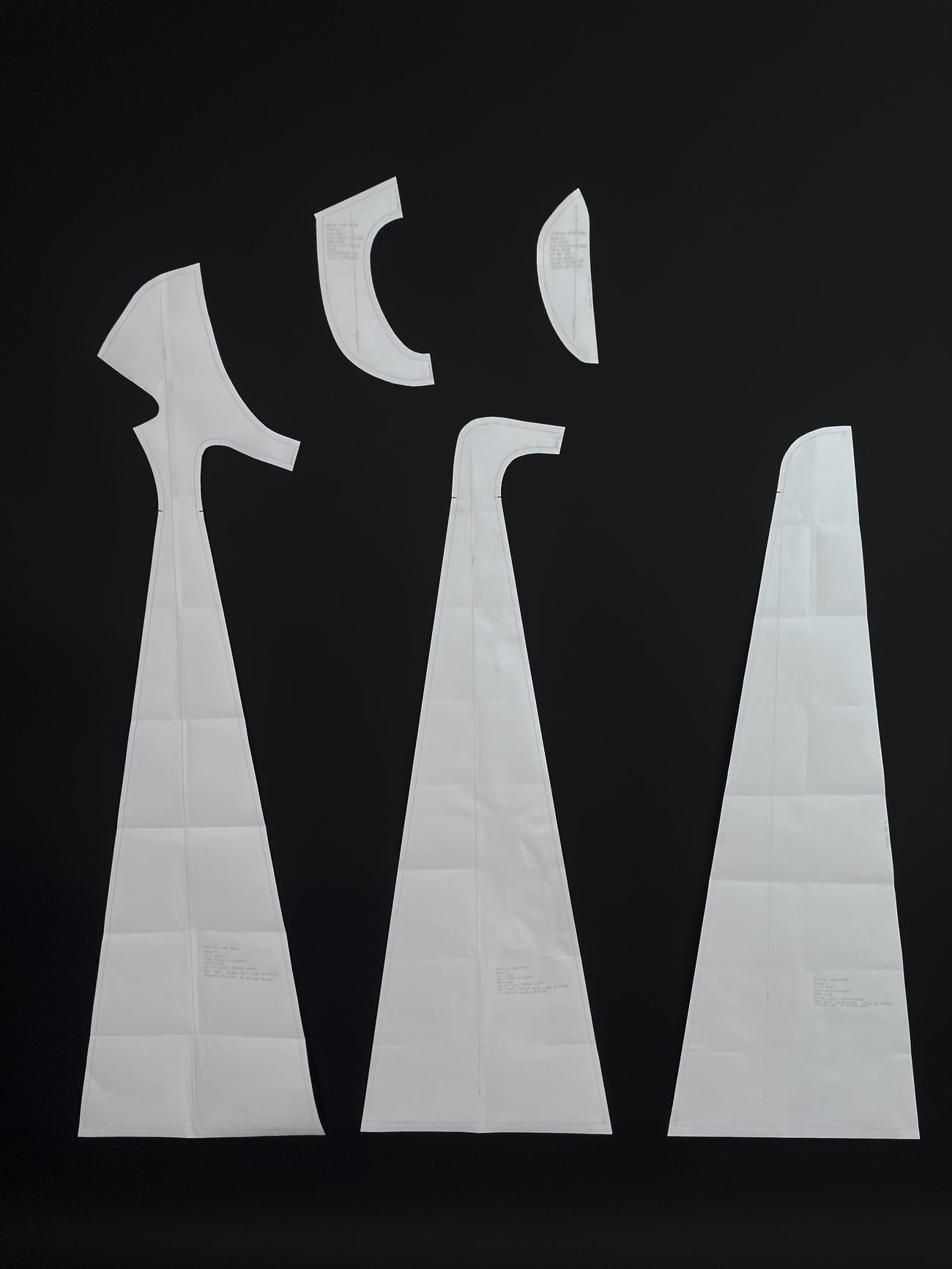

Poplin cape dress — whole production pattern, front
Front — the whole pattern.

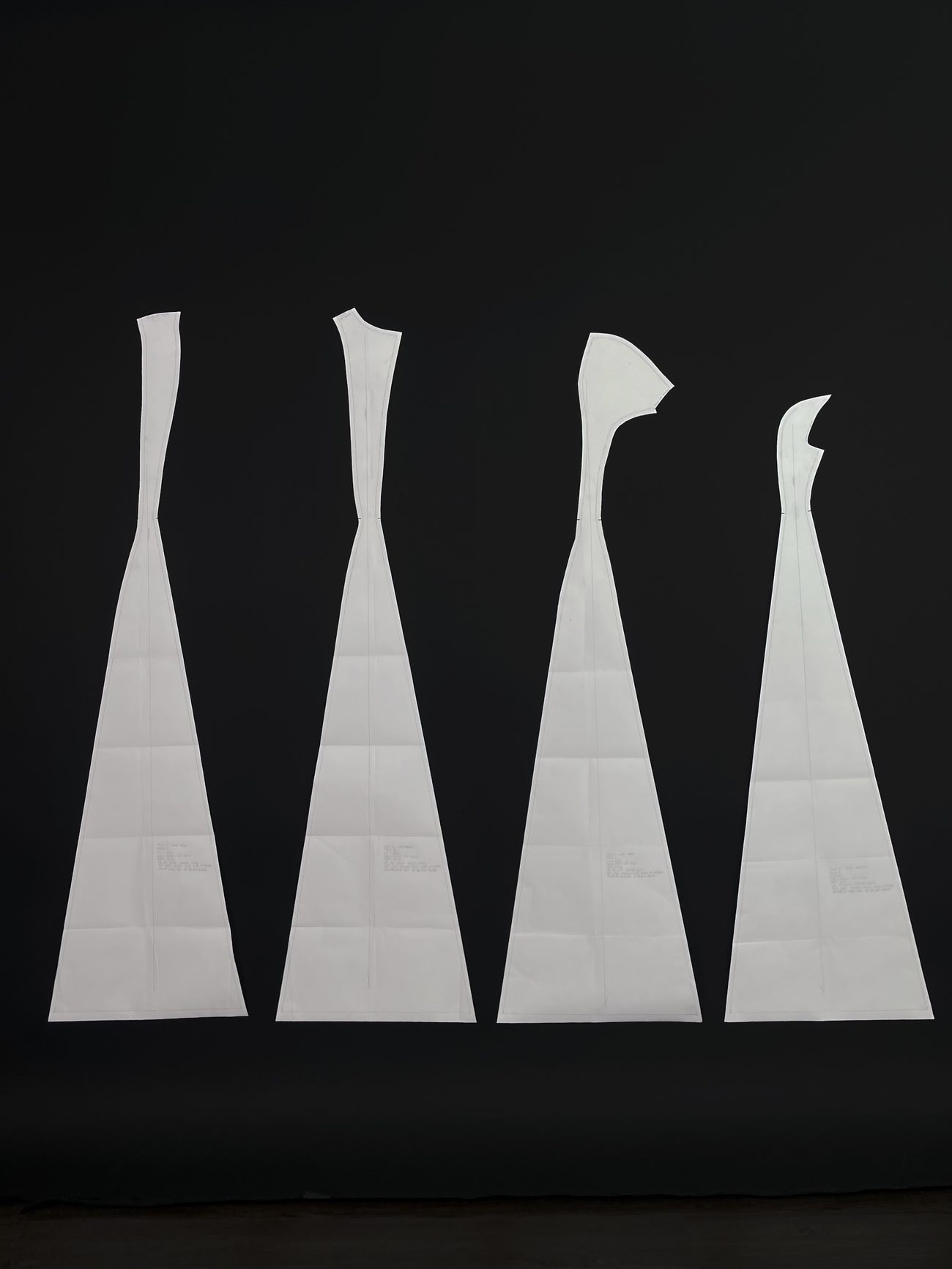

Poplin cape dress — whole production pattern, back
Back — the whole pattern.

S/A 3/8″ French seams · hem 13/16″ double fold, levelled at fitting · CF and collar edge no S/A, bias bound.

Front top — the smaller pieces

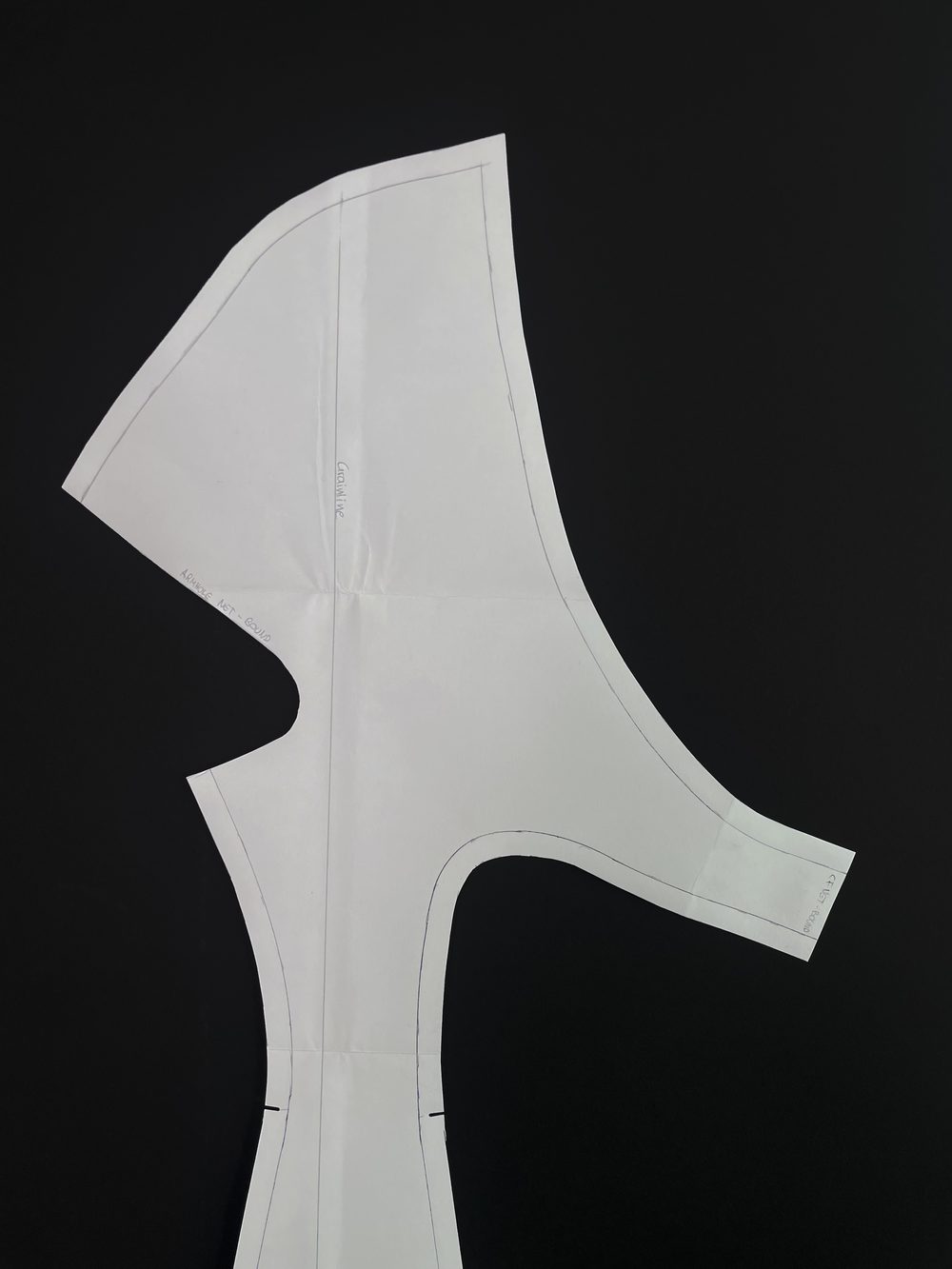

Pattern piece 5
Piece 5

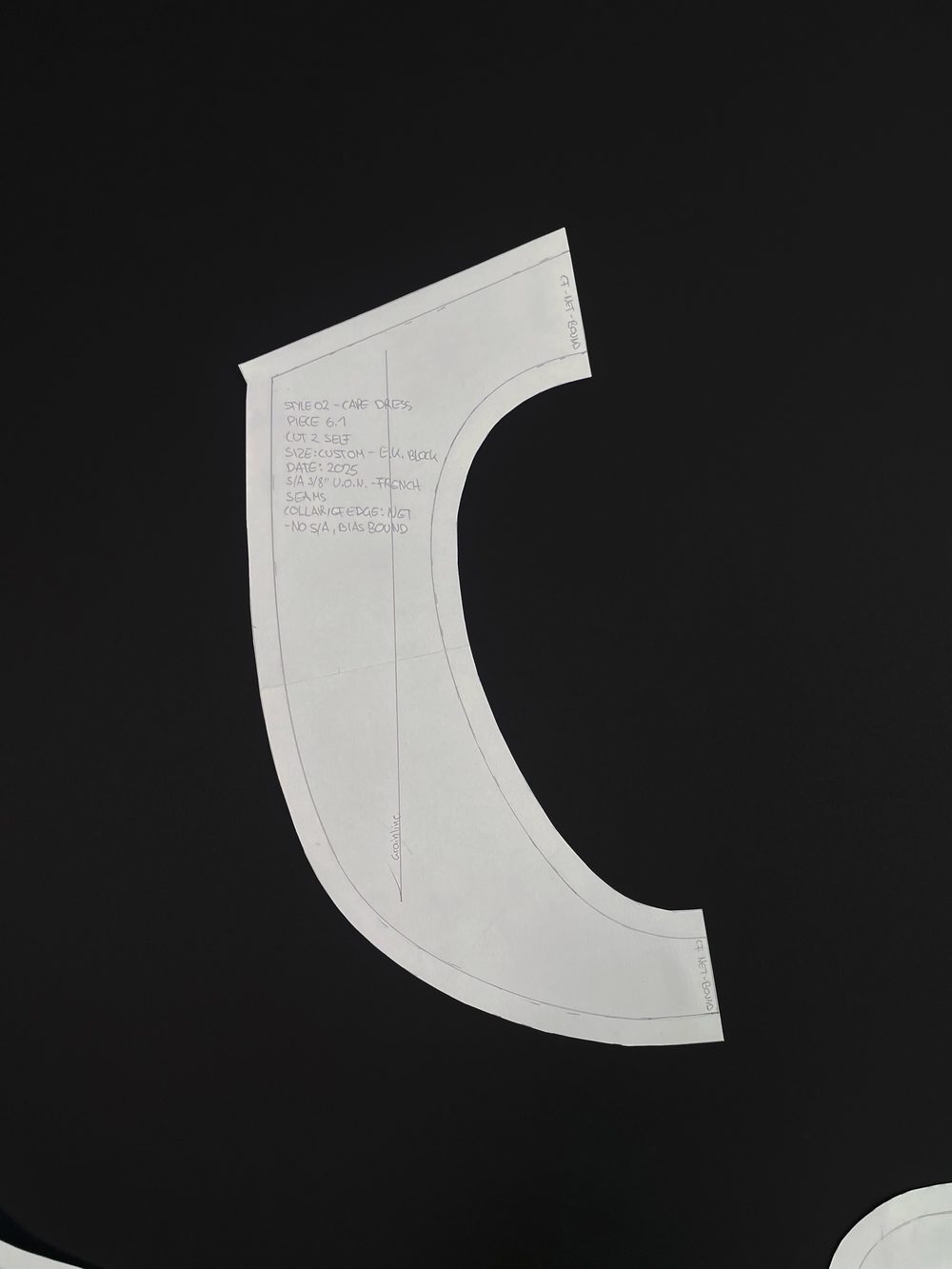

Pattern piece 6.1
Piece 6.1

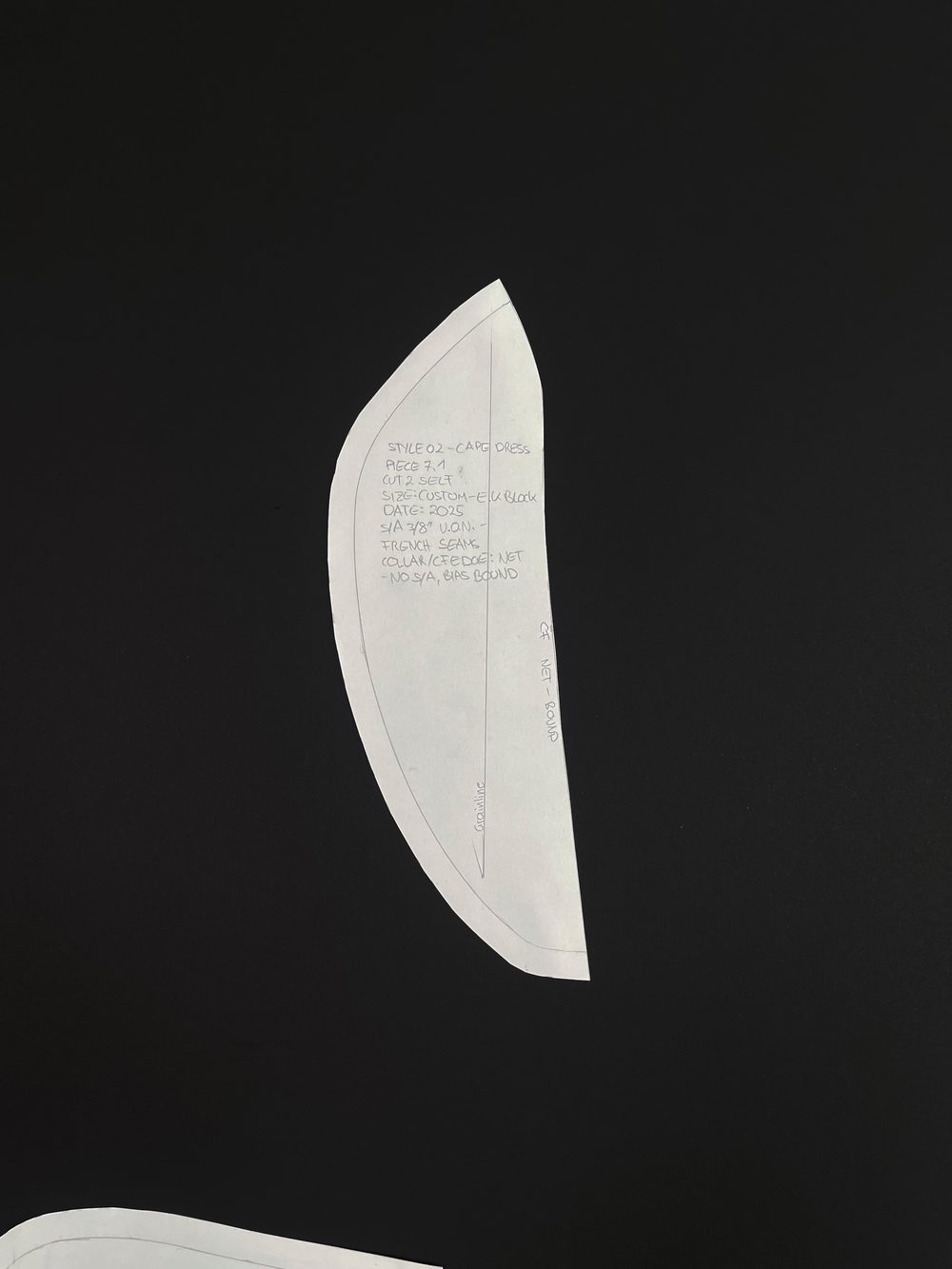

Pattern piece 7.1
Piece 7.1

Inside the garment

Unlined, no raw edges

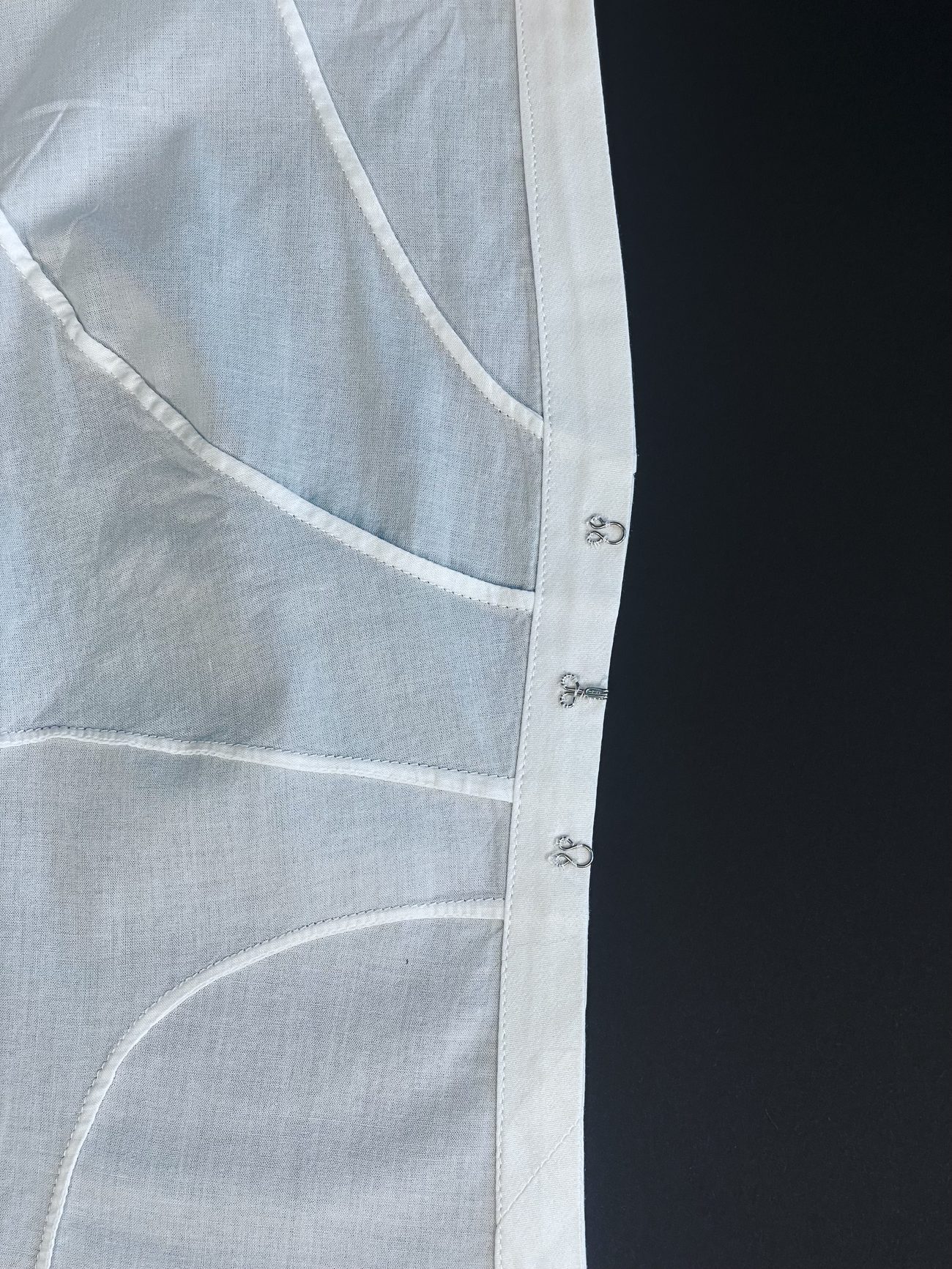

Garment interior showing French seams throughout
French seams throughout the whole dress · bias binding at CF · hooks alternate direction for maximum hold.

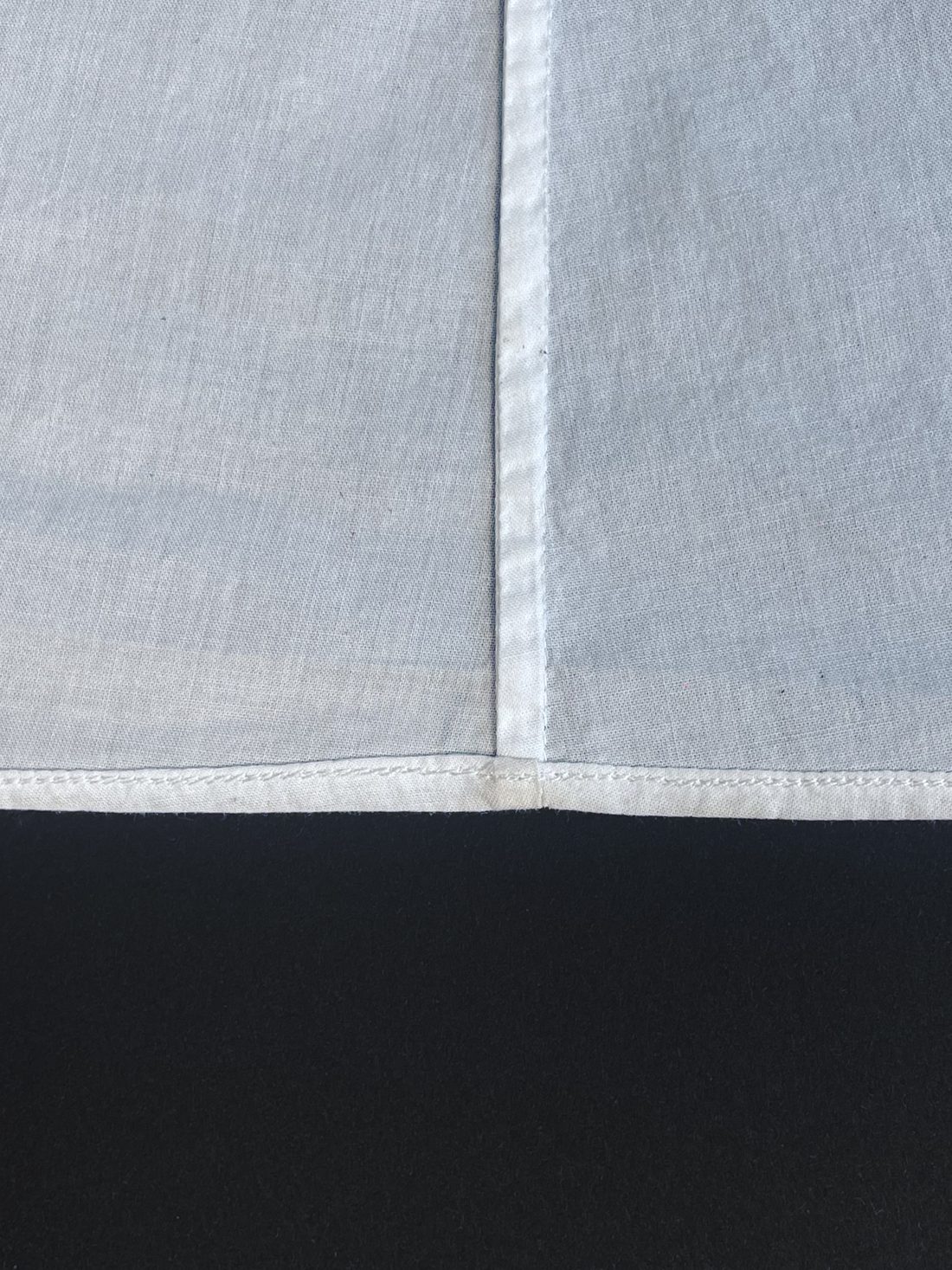

Slim double-fold hem
Hem is a slim double fold, levelled at fitting.

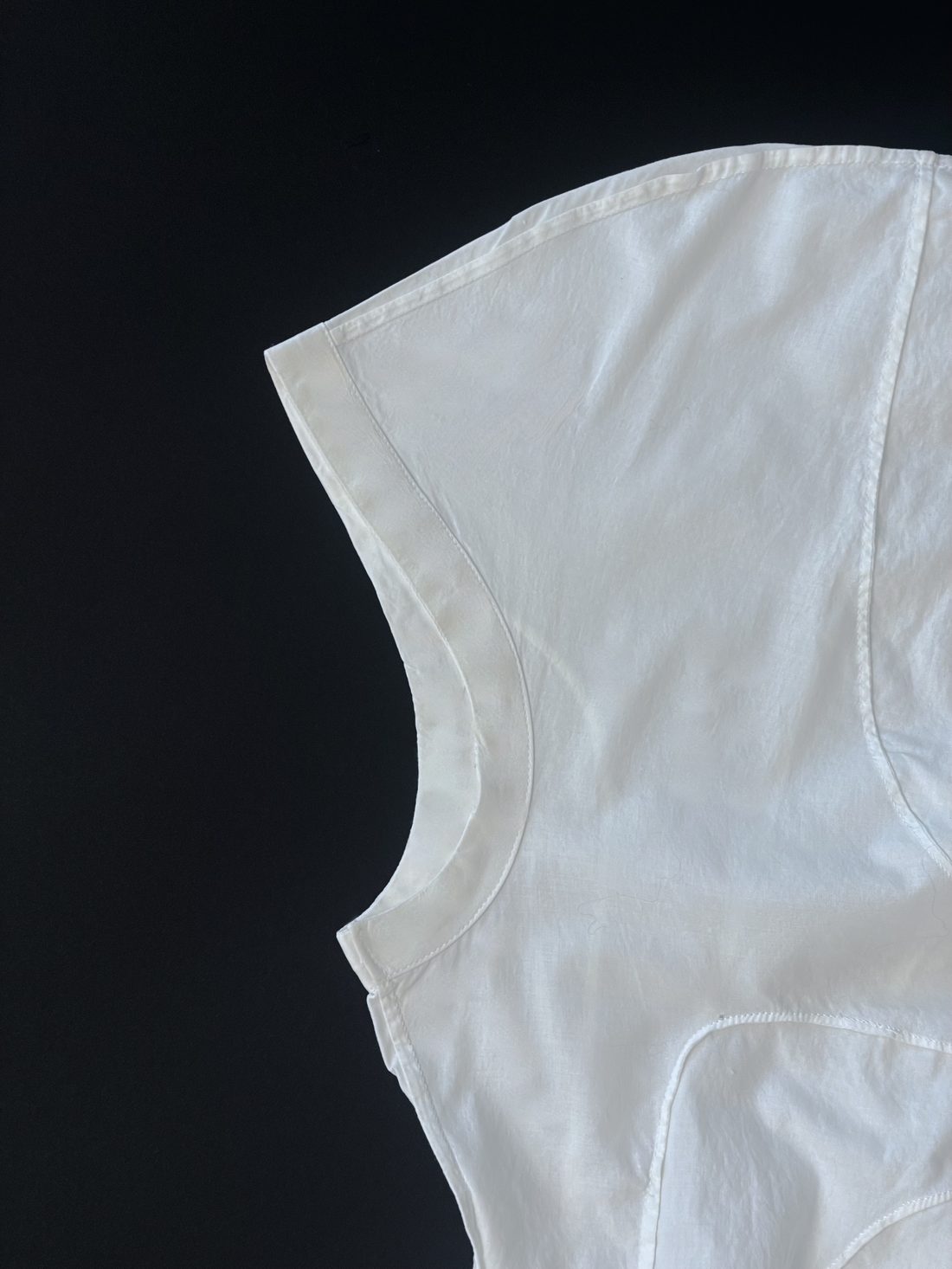

Bias-bound armhole
Armhole bias bound.

01 · Knitwear

Patterned and sewn by Amira Ogle
2025 · Paris, France
Plissé knit top, front
Plissé knit top, back
SelfPlissé knit, polyester and cotton
Seams4-thread overlock, 3/8″
HemsCoverstitch, 4/8″ turn-up
NeckSelf band
ClosureNone, pull-on
Design sketch, Style 01
Design sketch

Production pattern

Knit · stretch stated on the piece

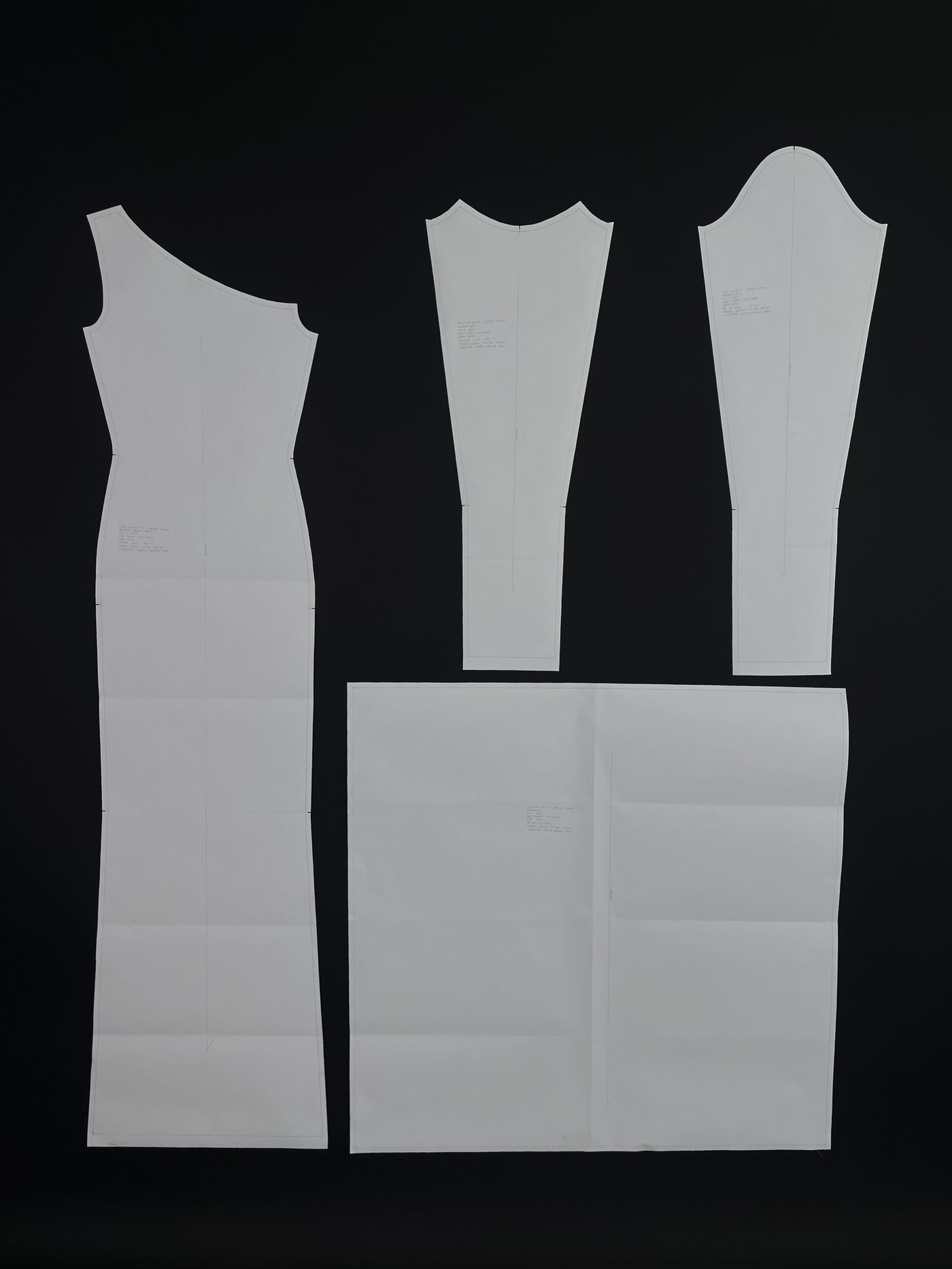

All pattern pieces for the knit top
All pieces. S/A 3/8″ for 4-thread overlock · hem 4/8″ coverstitch turn-up · neck band cut to a stated ratio of the neckline.

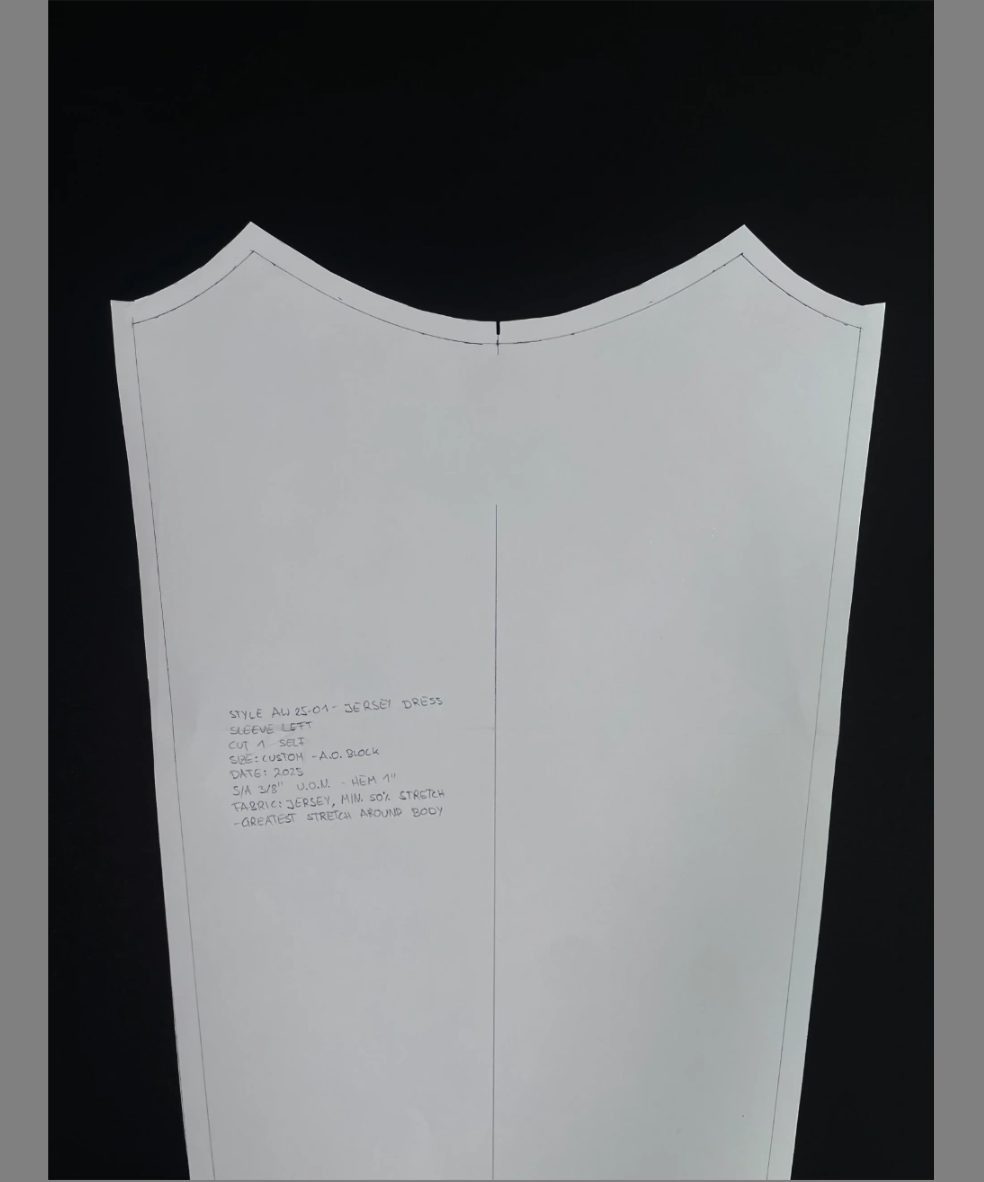

Left sleeve pattern piece
Left sleeve.

Construction

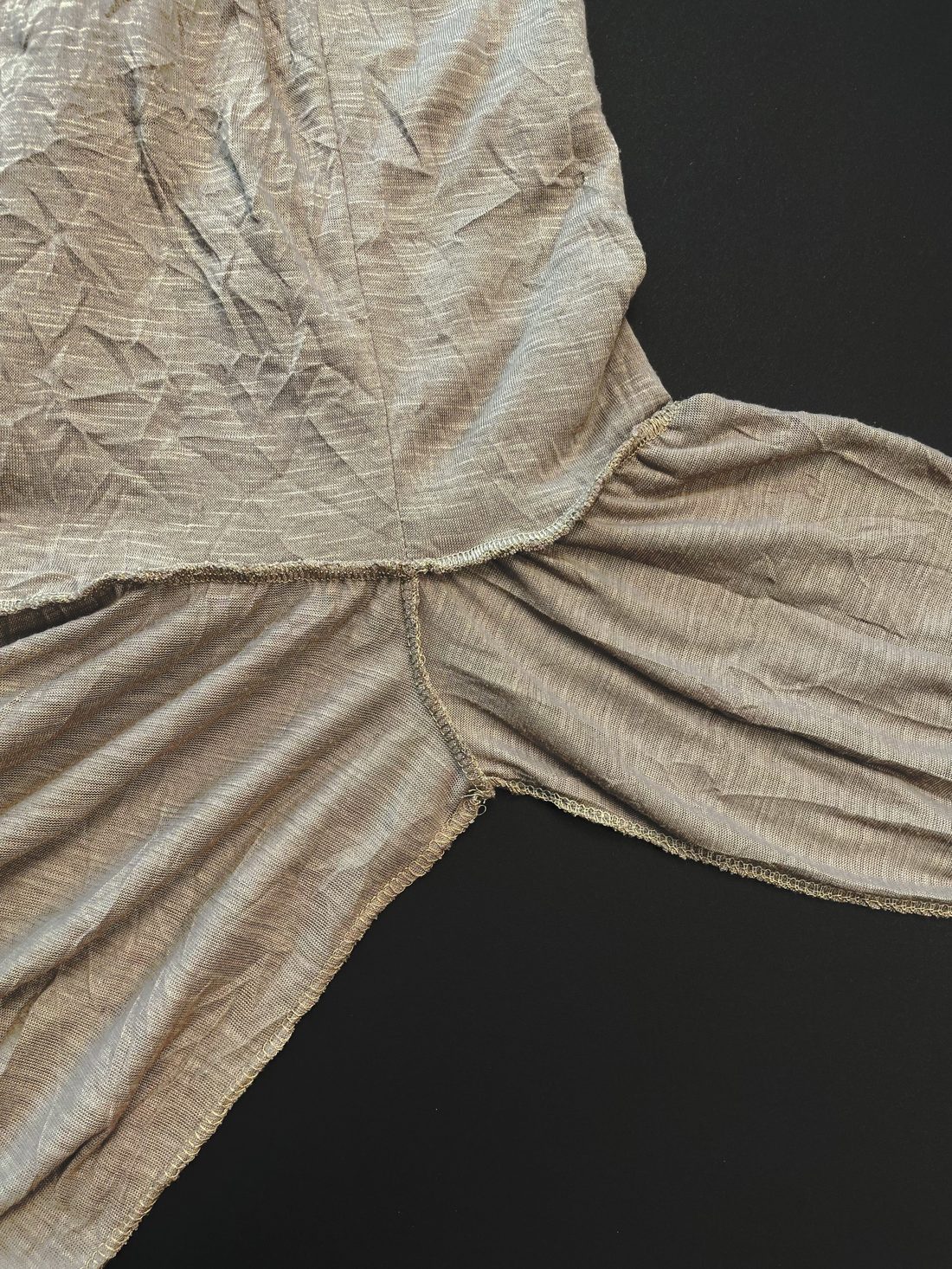

4-thread overlock seam detail
4-thread overlock at 3/8″.

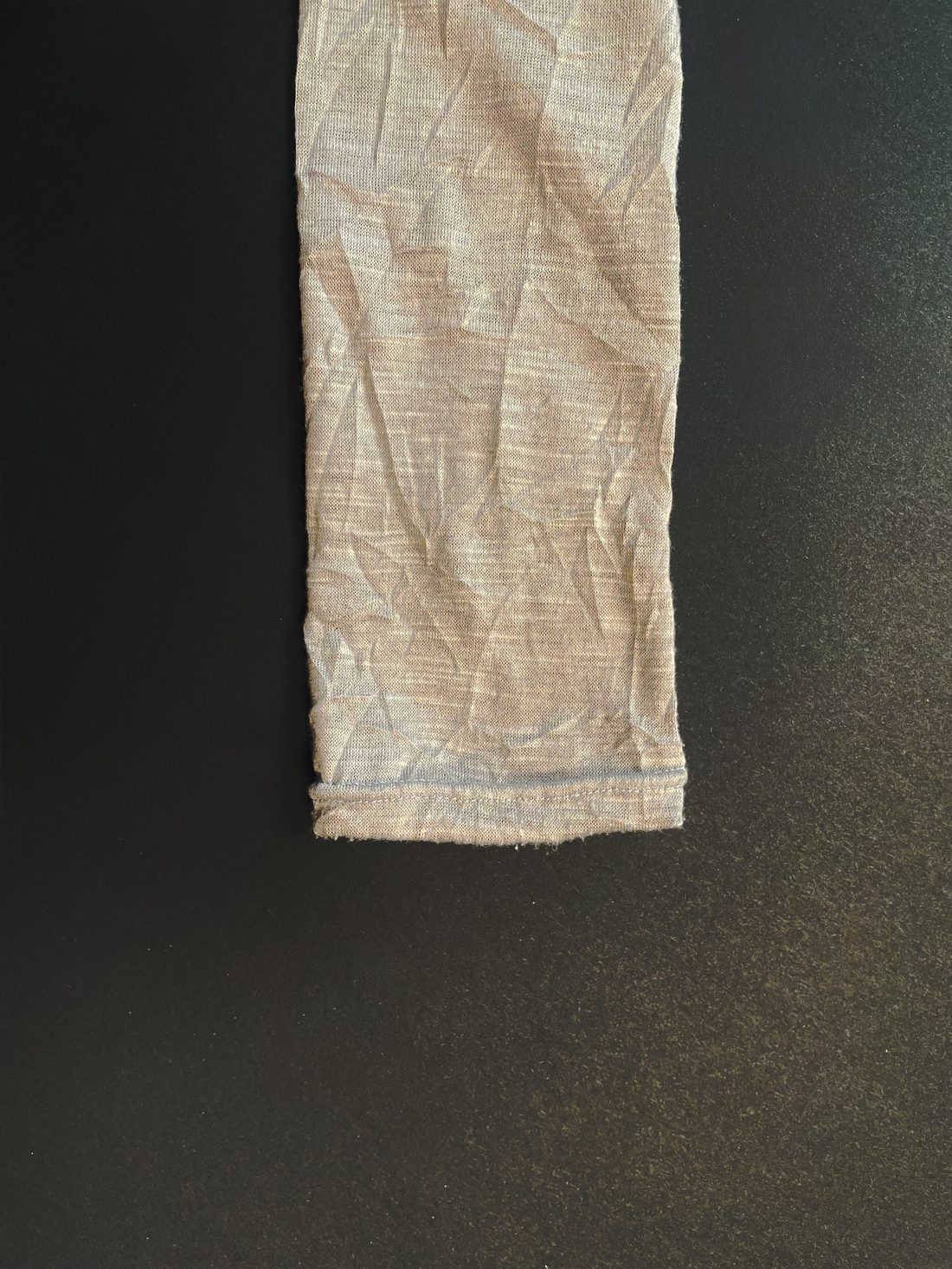

Coverstitched hem detail
Coverstitched hem, 4/8″ turn-up, keeps its stretch.

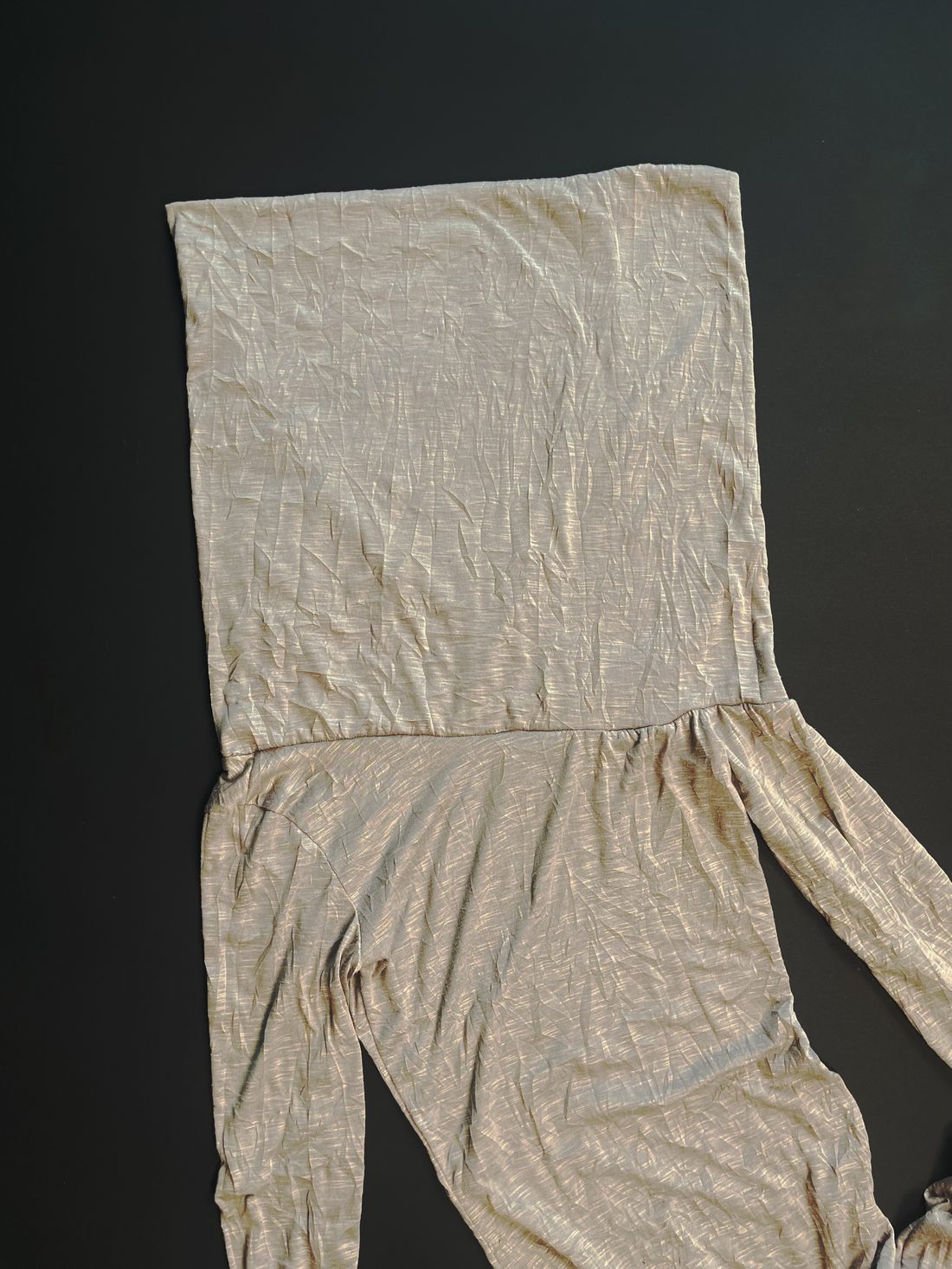

Self band at the neckline
Self band at the neckline, held without ripple.
What I can help you with

Hand me a sketch, a tech pack, or a garment to copy. You get back a pattern your cutter can work from and a sample you can price.

Patterns
Drafted flat or draped, converted to cut-line and marked for the cutting room.
Samples
Cut and sewn by the same hands that made the pattern, on industrial machines.
Fittings
Corrections carried back onto the pattern, for an efficient, perfect fit.
Copies
A pattern taken from an existing garment when there is no drawing to work from.
